DSR-50A-+37KW-Belt-Driven-Screw-Air-Compressor

DSR-50A Belt Driven Screw Air Compressor

MODEL：DSR-50A

POWER：37KW

HORSEPOWER：50HP

Product desciption

◆ Voltage: 380V/50HZ. 7.5A、10A are direct startup, above 15A is star triangle start
◆ Other pressure (up to 16bar) screw air compressor, welcome to negotiate
◆ The company continuously improves the products and retains the right to change the design.Parameters are subject to change without prior notice
◆ Some models can be customized water cooling models
◆ A after the model represents air cooling and W represents water cooling

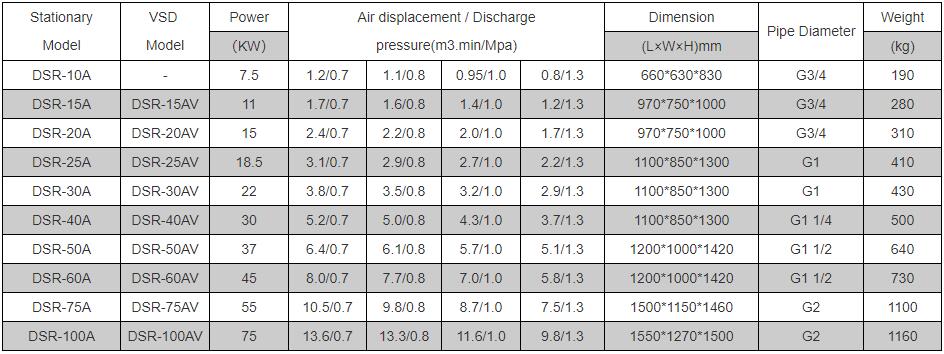

Technical parameters of belt driven screw air compressor

Stationary Model	VSD Model	Power	Air displacement / Discharge pressure(m3.min/Mpa)				Dimension	Pipe Diameter	Weight
Stationary Model	VSD Model	（KW）	Air displacement / Discharge pressure(m3.min/Mpa)				(L×W×H)mm	Pipe Diameter	(kg)
DSR-10A	-	7.5	1.2/0.7	1.1/0.8	0.95/1.0	0.8/1.3	660630830	G3/4	190
DSR-15A	DSR-15AV	11	1.7/0.7	1.6/0.8	1.4/1.0	1.2/1.3	9707501000	G3/4	280
DSR-20A	DSR-20AV	15	2.4/0.7	2.2/0.8	2.0/1.0	1.7/1.3	9707501000	G3/4	310
DSR-25A	DSR-25AV	18.5	3.1/0.7	2.9/0.8	2.7/1.0	2.2/1.3	11008501300	G1	410
DSR-30A	DSR-30AV	22	3.8/0.7	3.5/0.8	3.2/1.0	2.9/1.3	11008501300	G1	430
DSR-40A	DSR-40AV	30	5.2/0.7	5.0/0.8	4.3/1.0	3.7/1.3	11008501300	G1 1/4	500
DSR-50A	DSR-50AV	37	6.4/0.7	6.1/0.8	5.7/1.0	5.1/1.3	120010001420	G1 1/2	640
DSR-60A	DSR-60AV	45	8.0/0.7	7.7/0.8	7.0/1.0	5.8/1.3	120010001420	G1 1/2	730
DSR-75A	DSR-75AV	55	10.5/0.7	9.8/0.8	8.7/1.0	7.5/1.3	150011501460	G2	1100
DSR-100A	DSR-100AV	75	13.6/0.7	13.3/0.8	11.6/1.0	9.8/1.3	155012701500	G2	1160
